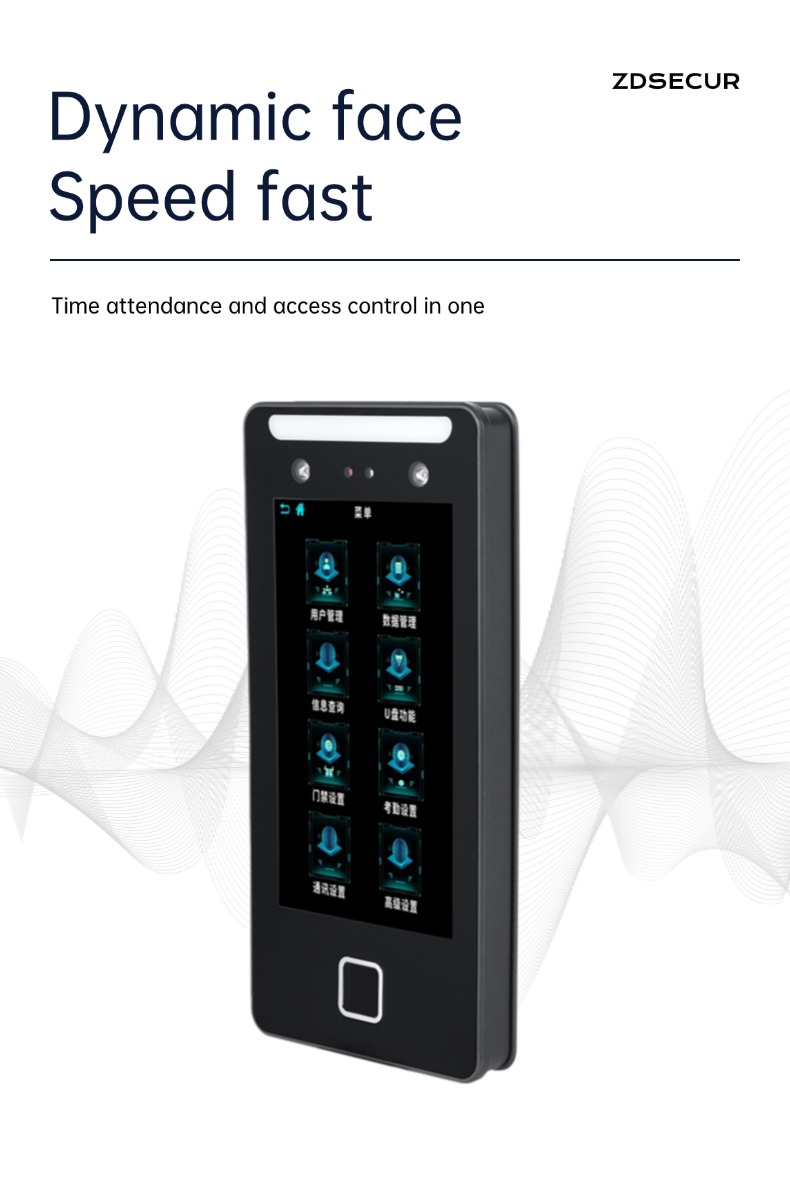

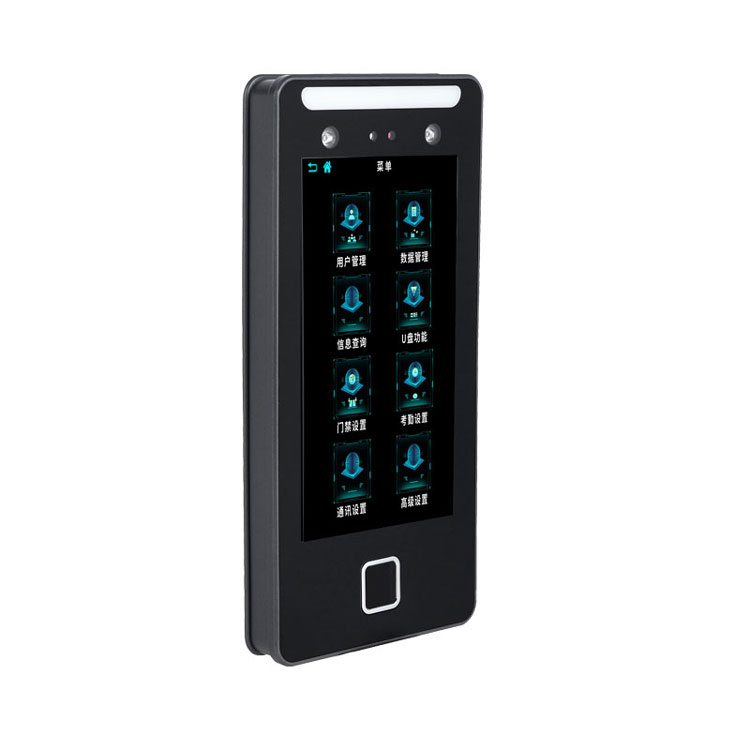

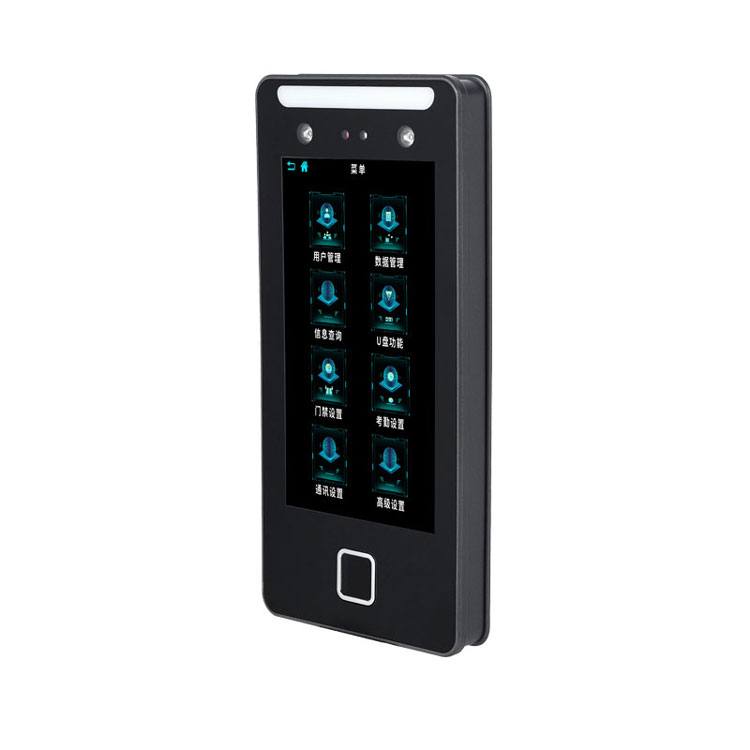

7" Dynamic Facial Fingerprint Recognition Time Attendance and Access Control System

   Dynamic recognition Access Control Machine

Display

Screen

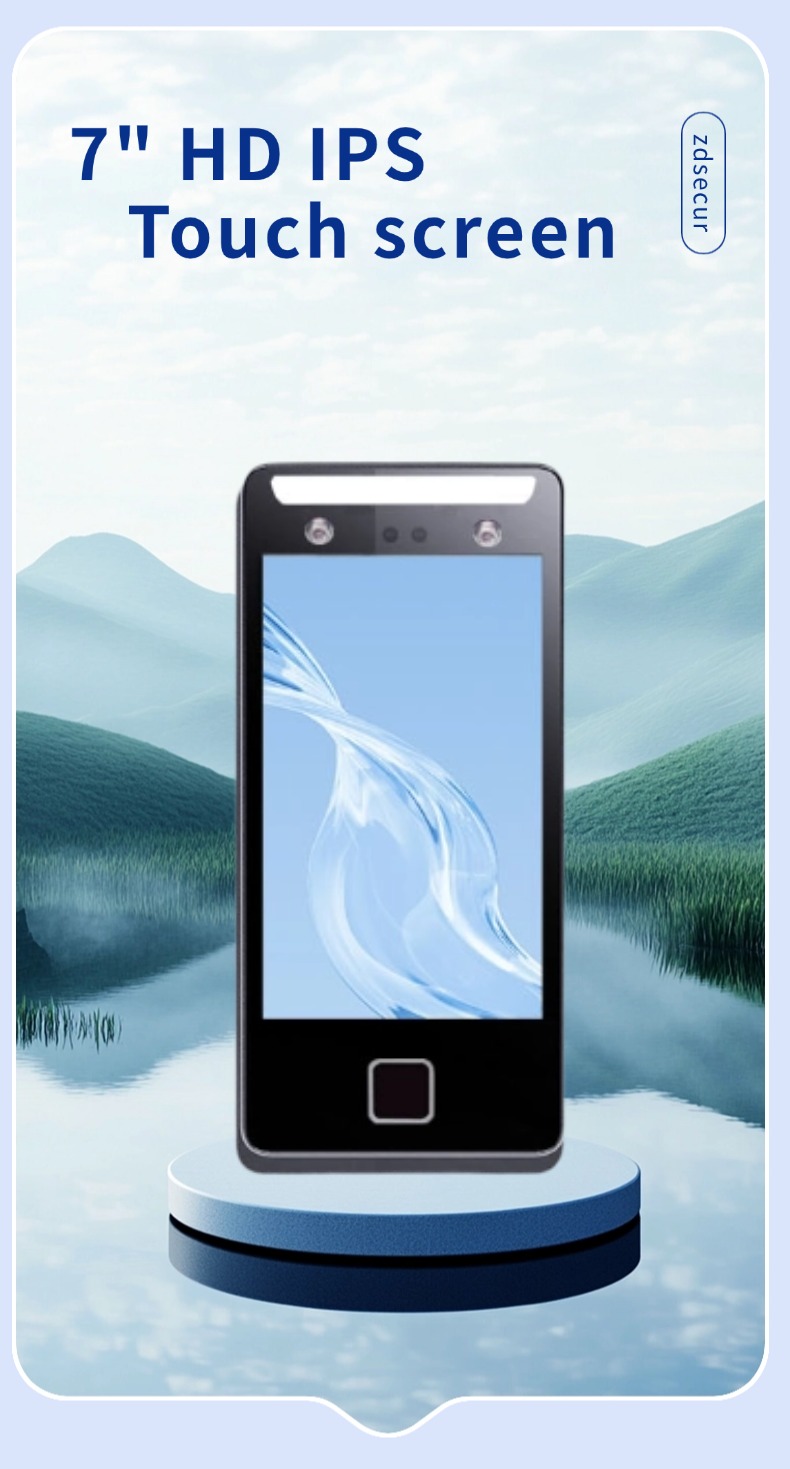

7”capacitive touch screen

Basic configuration

OS

LINUX 3.10

CPU

Quad-core 1.2G

Cameras

1.3 million pixel infrared camera+1.3 million pixel color WDR wide dynamic binocular camera

Identify capacity

Identify way

Facial, palm, fingerprint, password, card

Face Capacity

1000

Fingerprint capacity

5000

Palm capacity

500

Password & card capacity

1000

Logs capacity

200000

RAM

512MB

ROM

4G

Identify speed

0.3S

Identify distance

Enable live detection at 0.3-2.8 meters

Live detection

Eliminates to use photos and videos for check-in or out

Interface

U disk

USB2.0 x 1 to download & upload data

Power in

DC12V x 1

Network

Local network(TCP/IP or WIFI),cloud (BS)

Attendance

Self-service

U disk to download the attendance EXCEL report

Shift

Can set shift in machine and use U disk to upload the shift

Software

Free Ethernet attendance & access software

Access control

Access

Lock delay, sensor,door bell, NO, NC, external access control reader, Weigand 26/34 output, Weigand input

Work environment

Work temperature：-15℃～+45℃
Work humidity： 20%～90%

Others

Bell

 Can set bell for attendance time, can add external bell

Fill light

Supports infrared light, and the white fill light automatically lights up when a face is captured in low light

Power

Working current

Standby current：300mA                       Working current: 360mA

Working voltage

DC12V

Install

Install way

Wall mounted

Weight

Net weight

0.6 kg

Gross weight

0.8kg

Dimension

Device

240x116x25mm

Color box

290x160x65mm

Carton

Dimension：530x310x34mm，20pcs/carton, 16kg
